前情提要
在台灣,垃圾車的時間總是讓人捉摸不定。明明記得昨天是晚上七點來,今天卻遲遲等不到;或是剛好外出倒垃圾,垃圾車就這樣錯過了。相信這是許多人共同的困擾。
隨著智慧城市的發展,越來越多城市開始提供垃圾車即時資訊 API,但這些資料對一般民眾來說並不容易使用。

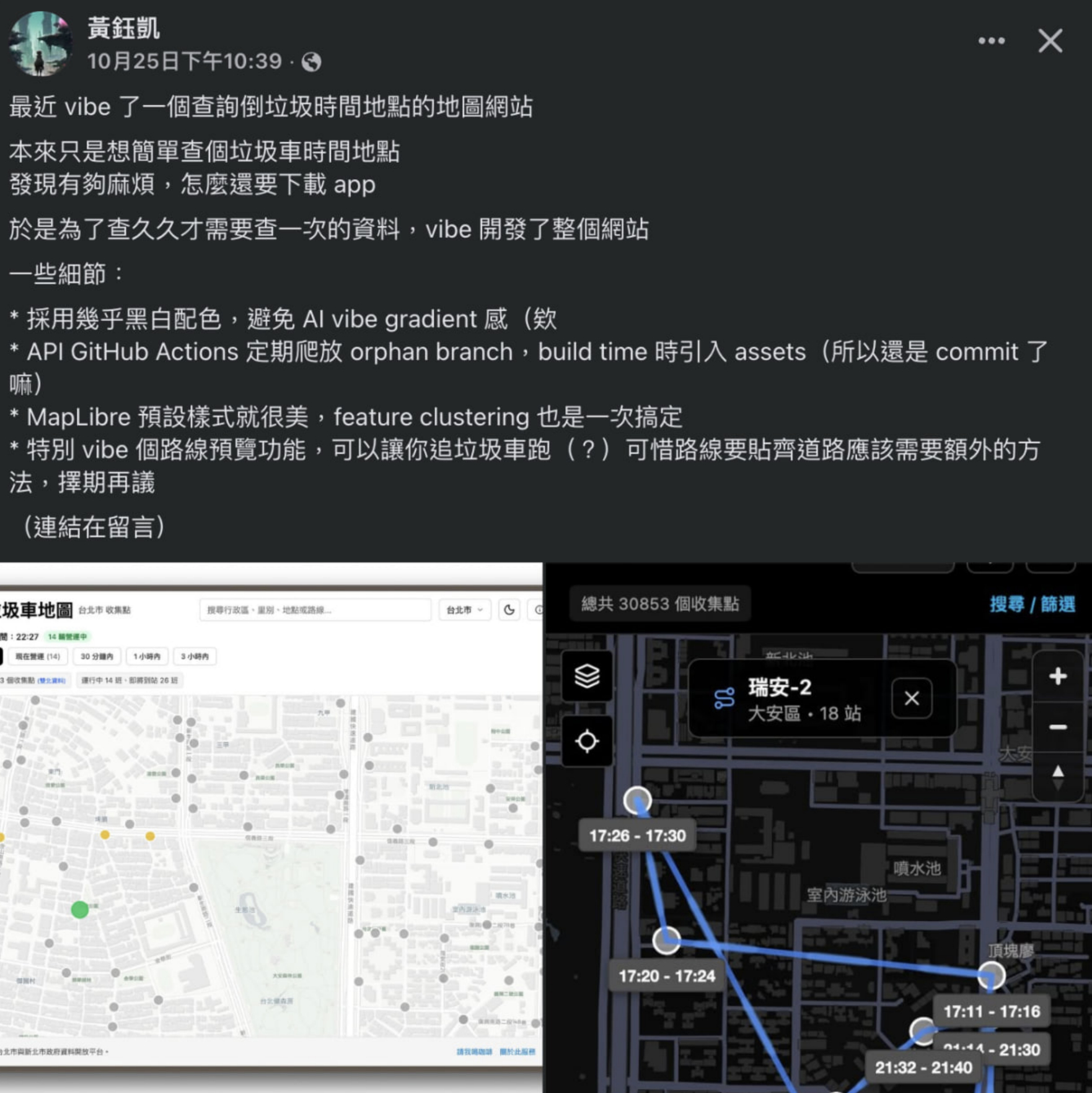

這時候我看到臉書上一個朋友貼文 ,他敘述他做出了一個垃圾車追蹤的網站。 (網站, github)

這時候我在想,難道不能結合 LINE Bot 做出一個可以很快速幫助到其他的工具嗎?因此,我決定打造一個垃圾車 LINE Bot,讓大家可以透過最熟悉的通訊軟體,輕鬆查詢垃圾車資訊,甚至設定提醒通知。更重要的是,這個 Bot 不只是簡單的指令查詢,而是整合了 Google Gemini AI,能夠理解「我晚上七點前在哪裡倒垃圾?」這樣的自然語言,提供真正智慧化的服務體驗。
專案程式碼
https://github.com/kkdai/linebot-garbage-helper
(透過這個程式碼,可以快速部署到 GCP Cloud Run,並使用 Cloud Build 實現自動化 CI/CD)
🗑️ 專案功能介紹
核心功能

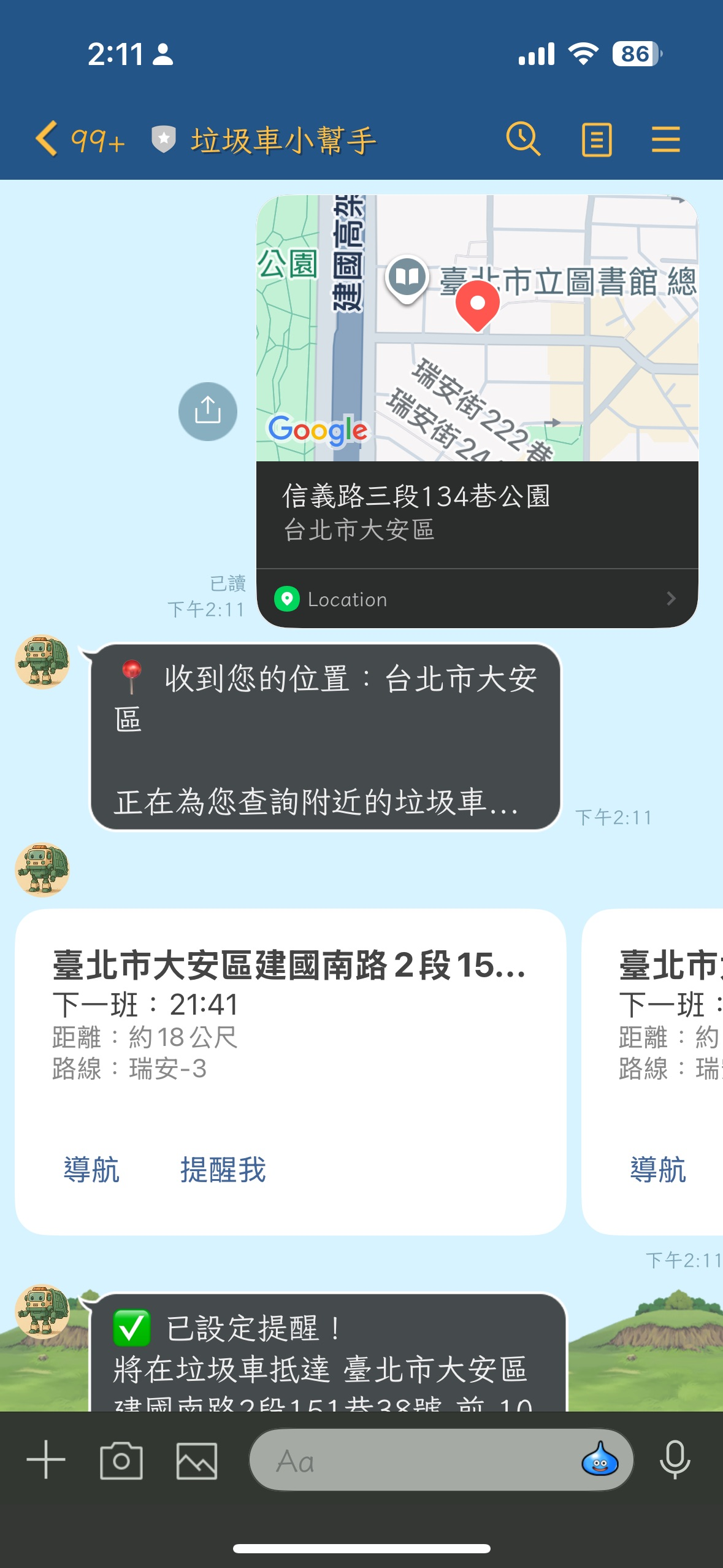

- 🗑️ 即時查詢垃圾車
- 輸入地址或分享位置即可查詢附近垃圾車站點
- 顯示預計抵達時間、路線資訊和 Google Maps 導航連結
- ⏰ 智慧提醒系統
- 可設定垃圾車抵達前 N 分鐘提醒
- 自動推播通知,再也不會錯過垃圾車
- 支援多種提醒狀態管理(活躍、已發送、已過期、已取消)
- 🤖 自然語言查詢
- 整合 Google Gemini AI,支援自然語言理解
- 例如:「我晚上七點前在台北市大安區哪裡倒垃圾?」
- 自動提取地點、時間範圍等查詢條件
- ❤️ 收藏地點功能
- 儲存常用地點(家、公司等)
- 快速查詢收藏地點的垃圾車資訊
🏗️ 技術架構說明
系統架構圖
┌─────────────────┐ ┌──────────────────┐ ┌─────────────────┐
│ LINE Client │───▶│ Cloud Run │───▶│ Firestore │
└─────────────────┘ │ (Go App) │ │ (Database) │
└──────────────────┘ └─────────────────┘
│
▼
┌──────────────────┐
│ External APIs │
│ • Google Maps │
│ • Gemini AI │
│ • 垃圾車資料源 │
└──────────────────┘
│
▼
┌──────────────────┐
│ Cloud Scheduler │
│ (提醒排程觸發) │
└──────────────────┘
💻 核心功能實作
1. 垃圾車資訊的處理
這是整個系統的核心部分,負責從開放資料 API 取得垃圾車資訊,並進行智慧化的查詢處理。
資料來源與結構設計
我們使用了開源專案 Yukaii/garbage 提供的垃圾車資料 API,這個 API 提供了台北市的即時垃圾車收集點資訊。
type GarbageData struct {
Result GarbageResult `json:"result"`
}
type CollectionPoint struct {
ID int `json:"_id"`
District string `json:"行政區"` // 行政區域
Neighborhood string `json:"里別"` // 里別資訊
VehicleNumber string `json:"車號"` // 垃圾車車號
Route string `json:"路線"` // 收集路線
ArrivalTime string `json:"抵達時間"` // 預計抵達時間
DepartureTime string `json:"離開時間"` // 預計離開時間
Location string `json:"地點"` // 收集地點
Longitude string `json:"經度"` // 經度座標
Latitude string `json:"緯度"` // 緯度座標
}
垃圾車資料適配器 (GarbageAdapter)
我們設計了一個專門的適配器來處理垃圾車資料的取得和查詢:
type GarbageAdapter struct {
httpClient *http.Client
}
func (ga *GarbageAdapter) FetchGarbageData(ctx context.Context) (*GarbageData, error) {
url := "https://raw.githubusercontent.com/Yukaii/garbage/data/trash-collection-points.json"
req, err := http.NewRequestWithContext(ctx, "GET", url, nil)
if err != nil {
return nil, err
}
resp, err := ga.httpClient.Do(req)
if err != nil {
return nil, err
}
defer resp.Body.Close()
if resp.StatusCode != http.StatusOK {
return nil, fmt.Errorf("unexpected status code: %d", resp.StatusCode)
}
var data GarbageData
if err := json.NewDecoder(resp.Body).Decode(&data); err != nil {
return nil, err
}
return &data, nil
}
智慧距離計算與最近站點查詢
系統能夠根據使用者位置,找出最近的垃圾車收集點:
func (ga *GarbageAdapter) FindNearestStops(userLat, userLng float64, data *GarbageData, limit int) ([]*NearestStop, error) {
var nearestStops []*NearestStop
now := time.Now()
for _, point := range data.Result.Results {
// 解析座標
lat, lng, err := ga.parseCoordinates(point.Latitude, point.Longitude)
if err != nil {
continue
}
// 使用 Haversine 公式計算距離
distance := geo.CalculateDistance(userLat, userLng, lat, lng)
// 解析時間並處理跨日問題
eta, err := parseTimeToToday(point.ArrivalTime)
if err != nil {
continue
}
// 如果時間已過,調整到明天
if eta.Before(now) {
eta = eta.Add(24 * time.Hour)
}
nearestStops = append(nearestStops, &NearestStop{
Stop: stop,
Route: route,
Distance: distance,
ETA: eta,
CollectionPoint: &point,
})
}
// 按距離排序
sort.Slice(nearestStops, func(i, j int) bool {
return nearestStops[i].Distance < nearestStops[j].Distance
})
return nearestStops[:limit], nil
}
時間窗口查詢功能
這是配合 Gemini AI 的進階功能,當使用者詢問「晚上七點前在哪裡倒垃圾?」時:
func (ga *GarbageAdapter) FindStopsInTimeWindow(userLat, userLng float64, data *GarbageData, timeWindow TimeWindow, maxDistance float64) ([]*NearestStop, error) {
var validStops []*NearestStop
for _, point := range data.Result.Results {
lat, lng, err := ga.parseCoordinates(point.Latitude, point.Longitude)
if err != nil {
continue
}
distance := geo.CalculateDistance(userLat, userLng, lat, lng)
// 距離過濾
if maxDistance > 0 && distance > maxDistance {
continue
}
eta, err := parseTimeToToday(point.ArrivalTime)
if err != nil {
continue
}
// 時間窗口過濾
if !isTimeInWindow(eta, timeWindow) {
continue
}
validStops = append(validStops, &NearestStop{
Stop: stop,
Route: route,
Distance: distance,
ETA: eta,
CollectionPoint: &point,
})
}
// 按時間排序,顯示最早的收集點
sort.Slice(validStops, func(i, j int) bool {
return validStops[i].ETA.Before(validStops[j].ETA)
})
return validStops, nil
}
彈性的時間解析處理
考慮到資料來源的時間格式可能不一致,我們實作了彈性的時間解析:
func parseTimeToToday(timeStr string) (time.Time, error) {
now := time.Now()
// 處理 4 位數格式 (1830)
if len(timeStr) == 4 {
layout := "1504"
t, err := time.Parse(layout, timeStr)
if err != nil {
return time.Time{}, err
}
return time.Date(now.Year(), now.Month(), now.Day(),
t.Hour(), t.Minute(), 0, 0, now.Location()), nil
}
// 處理標準格式 (18:30)
layout := "15:04"
t, err := time.Parse(layout, timeStr)
if err != nil {
return time.Time{}, err
}
return time.Date(now.Year(), now.Month(), now.Day(),
t.Hour(), t.Minute(), 0, 0, now.Location()), nil
}
整合到查詢流程
在實際的查詢處理中,這些功能被整合到統一的介面:
func (h *Handler) searchNearbyGarbageTrucks(ctx context.Context, userID string, lat, lng float64, intent *gemini.IntentResult) {
log.Printf("Searching nearby garbage trucks for user %s at coordinates: lat=%f, lng=%f", userID, lat, lng)
// 取得最新的垃圾車資料
garbageData, err := h.garbageAdapter.FetchGarbageData(ctx)
if err != nil {
log.Printf("Error fetching garbage data for user %s: %v", userID, err)
h.replyMessage(ctx, userID, "抱歉,無法取得垃圾車資料。")
return
}
var nearestStops []*garbage.NearestStop
// 如果有時間窗口查詢,使用時間過濾
if intent != nil && (intent.TimeWindow.From != "" || intent.TimeWindow.To != "") {
fromTime, toTime, err := h.geminiClient.ParseTimeWindow(intent.TimeWindow)
if err == nil {
timeWindow := garbage.TimeWindow{From: fromTime, To: toTime}
nearestStops, err = h.garbageAdapter.FindStopsInTimeWindow(lat, lng, garbageData, timeWindow, 2000)
}
}
// 如果沒有時間過濾結果,使用一般的最近距離查詢
if len(nearestStops) == 0 {
nearestStops, err = h.garbageAdapter.FindNearestStops(lat, lng, garbageData, 5)
}
// 發送結果給使用者
h.sendGarbageTruckResults(ctx, userID, nearestStops)
}
這樣的設計讓系統能夠:
- 高效率處理大量資料:每次查詢都會取得最新資料,確保資訊準確性
- 智慧化查詢:結合地理位置、時間窗口等多重條件
- 彈性擴展:易於加入其他城市的垃圾車資料源
- 錯誤處理:對於資料格式異常有適當的容錯機制
2. LINE Webhook 處理
首先來看看如何處理 LINE 的 webhook 事件:
func (h *Handler) HandleWebhook(w http.ResponseWriter, r *http.Request) {
log.Printf("Webhook received from %s", r.RemoteAddr)
events, err := webhook.ParseRequest(h.channelSecret, r)
if err != nil {
log.Printf("Error parsing webhook request: %v", err)
http.Error(w, "Bad Request", http.StatusBadRequest)
return
}
ctx := r.Context()
for _, event := range events {
go h.handleEvent(ctx, event) // 使用 goroutine 處理事件
}
w.WriteHeader(http.StatusOK)
}
3. Gemini AI 關於 LLM 理解的部分
這是整個系統最有趣的部分,透過 Gemini 來理解使用者的自然語言查詢:
func (gc *GeminiClient) AnalyzeIntent(ctx context.Context, userMessage string) (*IntentResult, error) {
model := gc.client.GenerativeModel(gc.model)
prompt := fmt.Sprintf(`你是一個查詢意圖分析器,專門分析使用者關於垃圾車的查詢。
使用者輸入可能包含地名與時間。請分析輸入並輸出 JSON 格式的結果。
輸出格式:
{
"district": "地區名稱(如果有的話)",
"time_window": {
"from": "開始時間(HH:MM格式,如果有的話)",
"to": "結束時間(HH:MM格式,如果有的話)"
},
"keywords": ["關鍵字陣列"],
"query_type": "garbage_truck_eta"
}
範例:
輸入:「我晚上七點前在台北市大安區哪裡倒垃圾?」
輸出:
{
"district": "台北市大安區",
"time_window": {
"from": "",
"to": "19:00"
},
"keywords": ["台北市", "大安區", "倒垃圾", "晚上", "七點"],
"query_type": "garbage_truck_eta"
}
請分析以下使用者輸入:
「%s」
請只回傳 JSON,不要包含其他說明文字。`, userMessage)
resp, err := model.GenerateContent(ctx, genai.Text(prompt))
if err != nil {
return nil, err
}
// 解析 JSON 回應
var result IntentResult
if err := json.Unmarshal([]byte(responseText), &result); err != nil {
// 如果 Gemini 無法解析,回退到簡單的關鍵字比對
return &IntentResult{
District: extractDistrict(userMessage),
Keywords: []string{userMessage},
QueryType: "garbage_truck_eta",
}, nil
}
return &result, nil
}
4. 智慧提醒排程系統
提醒系統是這個專案的核心功能之一,設計上考慮了可靠性和效能:
func (s *Scheduler) ProcessReminders(ctx context.Context) error {
now := time.Now()
// 效能優化:先檢查是否有活躍提醒
count, err := s.store.CountActiveReminders(ctx)
if err != nil {
log.Printf("Warning: failed to count active reminders: %v", err)
} else if count == 0 {
log.Printf("No active reminders, skipping processing")
return nil
}
reminders, err := s.store.GetActiveReminders(ctx, now)
if err != nil {
return fmt.Errorf("failed to get active reminders: %w", err)
}
log.Printf("Found %d active reminders to process", len(reminders))
for _, reminder := range reminders {
notificationTime := reminder.ETA.Add(-time.Duration(reminder.AdvanceMinutes) * time.Minute)
// 檢查是否到了發送提醒的時間
if now.Before(notificationTime) {
continue // 還不到發送時間
}
if now.After(reminder.ETA) {
// ETA 已過期,標記為過期
s.store.UpdateReminderStatus(ctx, reminder.ID, "expired")
continue
}
// 發送提醒通知
if err := s.sendReminderNotification(ctx, reminder); err != nil {
log.Printf("Error sending reminder %s: %v", reminder.ID, err)
continue
}
// 更新狀態為已發送
s.store.UpdateReminderStatus(ctx, reminder.ID, "sent")
}
return nil
}
5. Firestore 資料結構設計
我們使用 Firestore 來儲存使用者資料和提醒資訊:
type Reminder struct {
ID string `firestore:"id"`
UserID string `firestore:"userId"`
StopName string `firestore:"stopName"`
RouteID string `firestore:"routeId"`
ETA time.Time `firestore:"eta"`
AdvanceMinutes int `firestore:"advanceMinutes"`
Status string `firestore:"status"` // active, sent, expired, cancelled
CreatedAt time.Time `firestore:"createdAt"`
UpdatedAt time.Time `firestore:"updatedAt"`
}
type User struct {
ID string `firestore:"id"`
Favorites []Favorite `firestore:"favorites"`
CreatedAt time.Time `firestore:"createdAt"`
UpdatedAt time.Time `firestore:"updatedAt"`
}
6. 雙重保障的提醒機制
為了確保提醒不會遺漏,系統設計了雙重保障機制:
- 本地排程器:應用啟動時自動開始背景排程服務
- 外部觸發:透過 Cloud Scheduler 定期調用
/tasks/dispatch-reminders
// 本地排程器
func (s *Scheduler) StartScheduler(ctx context.Context) {
ticker := time.NewTicker(1 * time.Minute)
defer ticker.Stop()
cleanupTicker := time.NewTicker(1 * time.Hour)
defer cleanupTicker.Stop()
for {
select {
case <-ctx.Done():
return
case <-ticker.C:
s.ProcessReminders(ctx)
case <-cleanupTicker.C:
s.CleanupExpiredReminders(ctx)
}
}
}
// 外部觸發端點
r.HandleFunc("/tasks/dispatch-reminders", func(w http.ResponseWriter, r *http.Request) {
token := r.Header.Get("Authorization")
if token != "Bearer "+cfg.InternalTaskToken {
http.Error(w, "Unauthorized", http.StatusUnauthorized)
return
}
if err := reminderService.ProcessReminders(r.Context()); err != nil {
log.Printf("Error processing reminders: %v", err)
http.Error(w, "Internal Server Error", http.StatusInternalServerError)
return
}
w.WriteHeader(http.StatusOK)
})
🔧 遇到的挑戰與解決方案
1. 地址處理的多層 Fallback 策略
問題:使用者輸入具體地址(如「台北市中正區重慶南路一段122號」)時,Gemini 意圖分析可能失敗或只提取部分資訊,導致查詢失敗。
解決方案:設計多層 fallback 機制,確保任何情況下都能找到合適的地址:
func (h *Handler) handleTextMessage(ctx context.Context, userID, text string) {
// 意圖分析失敗時,仍然繼續處理而非直接返回錯誤
intent, err := h.geminiClient.AnalyzeIntent(ctx, text)
if err != nil {
log.Printf("Error analyzing intent: %v", err)
intent = nil // 設為 nil 繼續處理
}
var addressToGeocode string
var addressMethod string
// Method 1: 使用 Gemini 解析的 District
if intent != nil && intent.District != "" {
addressToGeocode = intent.District
addressMethod = "intent.District"
} else {
// Method 2: 使用 Gemini 地址提取
extractedLocation, err := h.geminiClient.ExtractLocationFromText(ctx, text)
if err == nil && strings.TrimSpace(extractedLocation) != "" {
addressToGeocode = strings.TrimSpace(extractedLocation)
addressMethod = "gemini.ExtractLocation"
} else {
// Method 3: 直接使用原始文字
addressToGeocode = text
addressMethod = "original.text"
}
}
// 地理編碼處理 + Fallback 策略
location, err := h.geoClient.GeocodeAddress(ctx, addressToGeocode)
if err != nil {
// Fallback 1: 如果不是原始文字,嘗試原始文字
if addressMethod != "original.text" {
location, err = h.geoClient.GeocodeAddress(ctx, text)
if err == nil {
h.searchNearbyGarbageTrucks(ctx, userID, location.Lat, location.Lng, intent)
return
}
}
// Fallback 2: 嘗試簡化地址(提取縣市區)
simplifiedAddress := h.extractSimplifiedAddress(text)
if simplifiedAddress != "" {
location, err = h.geoClient.GeocodeAddress(ctx, simplifiedAddress)
if err == nil {
h.searchNearbyGarbageTrucks(ctx, userID, location.Lat, location.Lng, intent)
return
}
}
// 所有方法都失敗才回傳錯誤
h.replyMessage(ctx, userID, "抱歉,我找不到位置資訊...")
return
}
h.searchNearbyGarbageTrucks(ctx, userID, location.Lat, location.Lng, intent)
}
2. Gemini API 的穩定性處理
問題:Gemini API 偶爾會回傳非 JSON 格式的回應,導致解析失敗。
解決方案:實作錯誤處理和回退機制:
var result IntentResult
if err := json.Unmarshal([]byte(responseText), &result); err != nil {
// 如果 Gemini 無法解析,回退到簡單的關鍵字比對
return &IntentResult{
District: extractDistrict(userMessage),
Keywords: []string{userMessage},
QueryType: "garbage_truck_eta",
TimeWindow: TimeWindow{From: "", To: ""},
}, nil
}
3. Firestore 查詢效能優化
問題:每次都查詢所有活躍提醒會造成不必要的資料讀取。
解決方案:加入 count 查詢作為早期回傳優化:
// 先檢查是否有活躍提醒
count, err := s.store.CountActiveReminders(ctx)
if count == 0 {
log.Printf("No active reminders, skipping processing")
return nil
}
4. Cloud Scheduler 區域設定問題
問題:Cloud Scheduler 在某些區域可能不支援,導致自動提醒失效。
解決方案:設計雙重保障機制,即使外部排程器失效,本地排程器仍能正常運作。
5. 時區處理的複雜性
問題:在雲端環境中,伺服器可能運行在 UTC 時區,但垃圾車資料和使用者都在台灣時區,導致提醒時間計算錯誤。
具體症狀:
- 使用者在半夜收到「垃圾車 9 分鐘後抵達」的提醒
- 提醒時間與實際垃圾車時間不符
問題分析:
// 問題代碼:混用不同時區
now := time.Now() // 可能是 UTC
eta := parseTimeToToday("19:00") // 台灣時間 19:00
timeUntil := eta.Sub(now) // 時區不一致導致計算錯誤
解決方案:建立統一的時區處理機制:
// 1. 建立時區工具函數
package utils
func GetTaiwanTimezone() *time.Location {
taipeiTZ, err := time.LoadLocation("Asia/Taipei")
if err != nil {
// 備用方案:固定時區 UTC+8
taipeiTZ = time.FixedZone("CST", 8*3600)
}
return taipeiTZ
}
func NowInTaiwan() time.Time {
return time.Now().In(GetTaiwanTimezone())
}
func ToTaiwan(t time.Time) time.Time {
return t.In(GetTaiwanTimezone())
}
// 2. 修復時間解析
func parseTimeToToday(timeStr string) (time.Time, error) {
taipeiTZ := utils.GetTaiwanTimezone()
now := utils.NowInTaiwan()
// 確保解析出的時間在台灣時區
return time.Date(now.Year(), now.Month(), now.Day(),
hour, minute, 0, 0, taipeiTZ), nil
}
// 3. 修復提醒計算
func (s *Scheduler) processReminder(reminder *store.Reminder) error {
now := utils.NowInTaiwan()
etaInTaipei := utils.ToTaiwan(reminder.ETA)
notificationTime := etaInTaipei.Add(-10 * time.Minute)
timeUntilArrival := etaInTaipei.Sub(now)
// 現在時間計算是正確的
if now.After(notificationTime) && now.Before(etaInTaipei) {
// 發送提醒
}
}
測試驗證:
// 建立測試來驗證時區修復
func TestTimezoneHandling() {
now := utils.NowInTaiwan()
eta := time.Date(now.Year(), now.Month(), now.Day(), 19, 0, 0, 0, utils.GetTaiwanTimezone())
timeUntil := eta.Sub(now)
fmt.Printf("距離垃圾車抵達: %.0f 分鐘", timeUntil.Minutes())
}
這個修復確保了無論伺服器運行在哪個時區,所有時間計算都基於台灣時間進行。
6. LINE Bot 訊息推播限制
問題:LINE Bot 有推播訊息的頻率限制。
解決方案:
- 實作提醒狀態管理,避免重複發送
- 加入適當的錯誤處理和重試機制
- 使用 goroutine 非同步處理,避免阻塞主要流程
📊 效能監控與可靠性
健康檢查端點
r.HandleFunc("/healthz", func(w http.ResponseWriter, r *http.Request) {
w.WriteHeader(http.StatusOK)
w.Write([]byte("OK"))
}).Methods("GET")
詳細的日誌記錄
系統在關鍵節點都有詳細的日誌記錄,方便除錯和監控:
log.Printf("Processing reminder %s: ETA=%s, NotificationTime=%s, AdvanceMinutes=%d",
reminder.ID, reminder.ETA.Format("2006-01-02 15:04:05"),
notificationTime.Format("2006-01-02 15:04:05"), reminder.AdvanceMinutes)
🎯 總結與未來改進
這個垃圾車 LINE Bot 專案展示了如何結合現代化的技術棧來解決日常生活中的實際問題。透過 Go 語言的高效能、Gemini AI 的自然語言理解、以及 GCP 的雲端服務,我們打造了一個既實用又智慧的解決方案。
專案亮點
- 智慧化查詢:透過 Gemini AI 理解自然語言,提供更友善的使用體驗
- 可靠的提醒系統:雙重保障機制確保重要通知不會遺漏
- 現代化架構:使用微服務架構,易於擴展和維護
- 自動化部署:完整的 CI/CD 流程,降低維運成本
未來改進方向
- 效能優化
- 建立 Firestore 複合索引提升查詢效能
- 實作批量推播減少 API 調用
- 可靠性提升
- 加入分布式鎖避免重複執行
- 實作指數退避重試機制
- 功能擴展
- 支援更多城市的垃圾車資料
- 加入使用統計和分析功能
- 整合更多 AI 能力,如圖片識別
- 監控強化
- 整合 Prometheus/OpenTelemetry
- 建立完整的效能監控儀表板
透過這個專案,我深刻體會到 Go 語言在雲端原生應用開發上的優勢,以及 AI 技術如何讓傳統應用變得更加智慧化。
實戰經驗分享
在開發過程中,我們遇到了兩個典型的挑戰:
1. AI 模型的不穩定性處理
挑戰:如何處理 AI 模型的不穩定性。透過建立本地測試環境和多層 fallback 策略,我們確保了系統的穩定性:
# 我們建立了完整的測試環境
export GEMINI_API_KEY='your_key_here'
cd test && go run simple_main.go
這個測試程式幫助我們發現 Gemini 在地址解析上的限制,並及時實作了相應的解決方案。
2. 雲端應用的時區陷阱
挑戰:最容易被忽略但影響最大的問題 - 時區處理。
發現過程:
- 使用者反映在半夜收到垃圾車提醒
- 透過日誌發現時間計算異常
- 建立時區測試程式驗證問題
# 時區測試驗證
cd test && go run timezone_test_main.go
關鍵學習:
- 雲端部署時,絕對不能假設伺服器時區
- 建立專門的時區工具函數,統一處理所有時間相關操作
- 完整的測試覆蓋,包含時區邊界情況
這兩個經驗提醒我們:在 AI 驅動的雲端應用中,永遠要有備用方案,並且要特別注意基礎設施層面的差異。
希望這個經驗分享能夠幫助到正在學習相關技術的開發者們!
